How to Use
CSSVG Editor

The canvas is the dark central panel where your SVG lives. It matches your scene dimensions exactly — so what you see is what gets exported. Click any element to select it. Drag to reposition. The blue handles on the selection box let you resize. A small tooltip shows the current size in pixels as you drag.

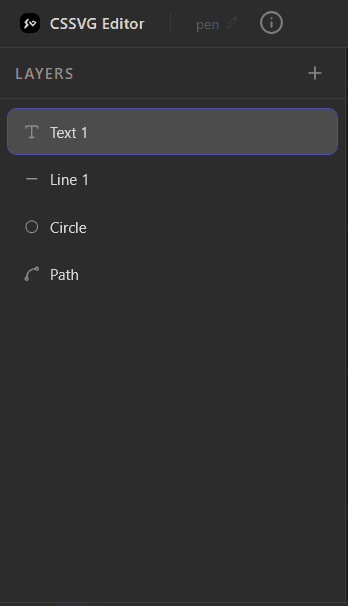

The Layers panel on the left lists every element in your scene. Click the + icon to add a new shape: Rectangle, Circle, Line, Polygon, Path (pen tool), or Text. Drag layers to reorder them — layers higher in the list render on top. Click the trash icon (or press Delete with no keyframe selected) to remove an element.

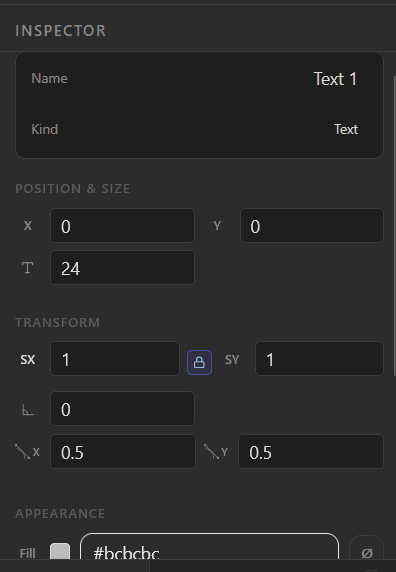

The Inspector panel on the right shows every property of the selected element at the current playhead position. Edit X, Y, scale, rotation, opacity, fill color, stroke, and stroke width. Changes you make while a keyframe exists at that time are recorded into that keyframe. Changes made between keyframes create a new keyframe automatically.

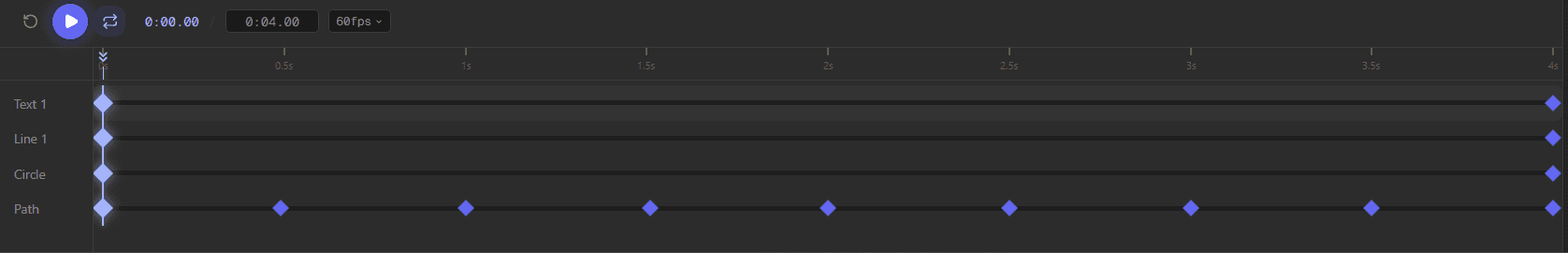

The timeline at the bottom is where animation happens. Each element gets its own row. Keyframes appear as blue diamonds — drag them left or right to shift their timing. Click the playhead (the vertical line) and drag to scrub through the animation. Use the Play button or spacebar to preview. The duration field (e.g. 0:04.00) and FPS selector are both editable.

Each keyframe stores a snapshot of an element's full state at a point in time: position, rotation, scale, opacity, fill, stroke, and more. The editor interpolates smoothly between keyframes using the easing curve you set. The Keyframes list in the bottom-right of the inspector shows all keyframes for the selected element — click one to jump the playhead to that time.

Easing controls how the animation accelerates between two keyframes. Click the diagonal line icon next to any keyframe in the keyframe list to open the easing editor. Drag the two bezier handles to shape the curve, or pick a preset: Linear, Ease In, Ease Out, Ease In-Out, Spring, Bounce, Anticipate, and more.

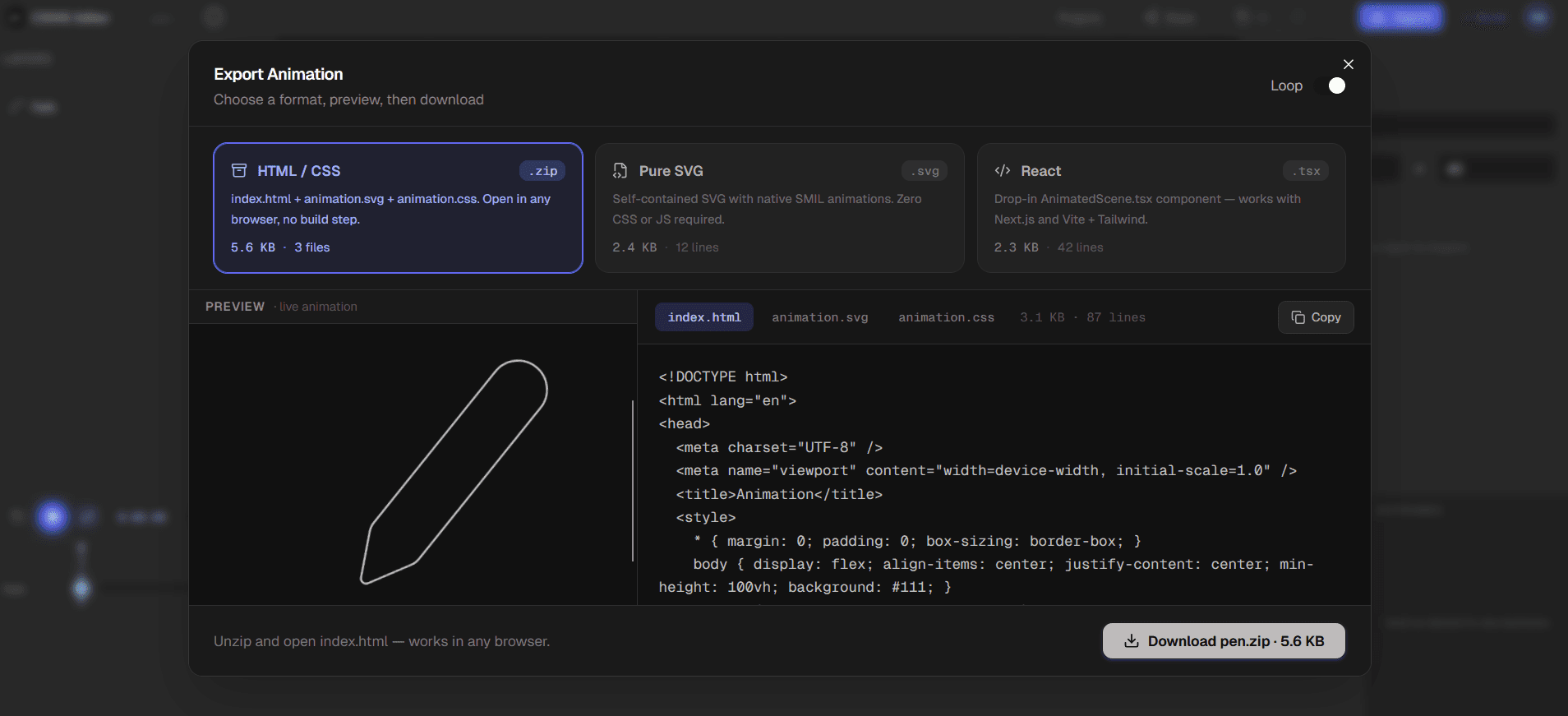

Click the Export button in the top-right to open the Export dialog. Choose one of three formats: HTML/CSS (.zip with index.html + animation.svg + animation.css), Pure SVG (self-contained SMIL .svg file), or React (.tsx component with inline SMIL). A live preview plays your animation on the left. The code viewer on the right lets you inspect and copy the output before downloading.

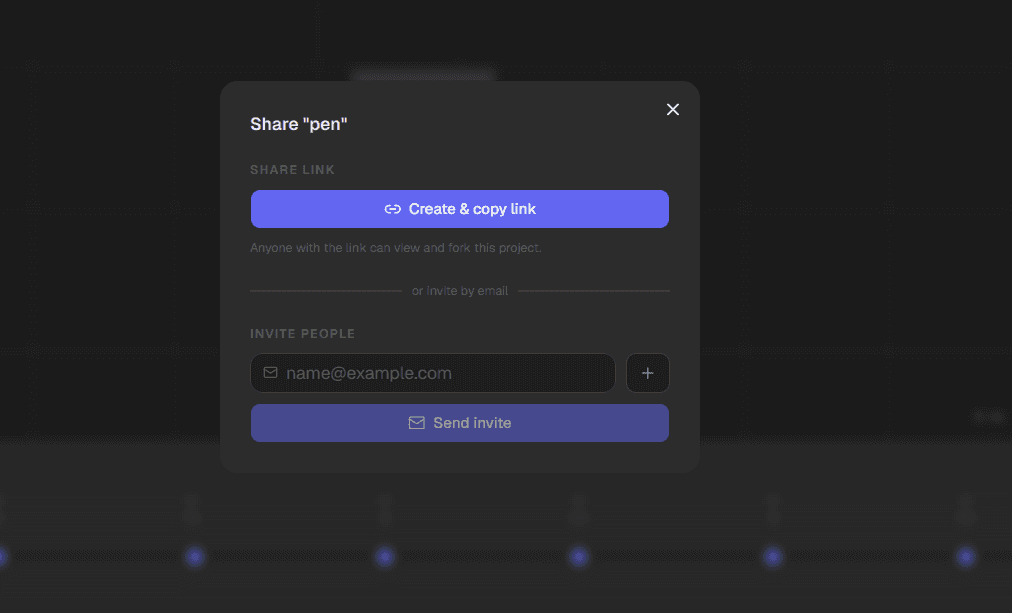

Click Share in the top bar to generate a public link. Anyone with the link can view your animation and fork it into their own projects. You can also invite collaborators directly by email from the same dialog. Shared projects are read-only for viewers — they must fork to edit.

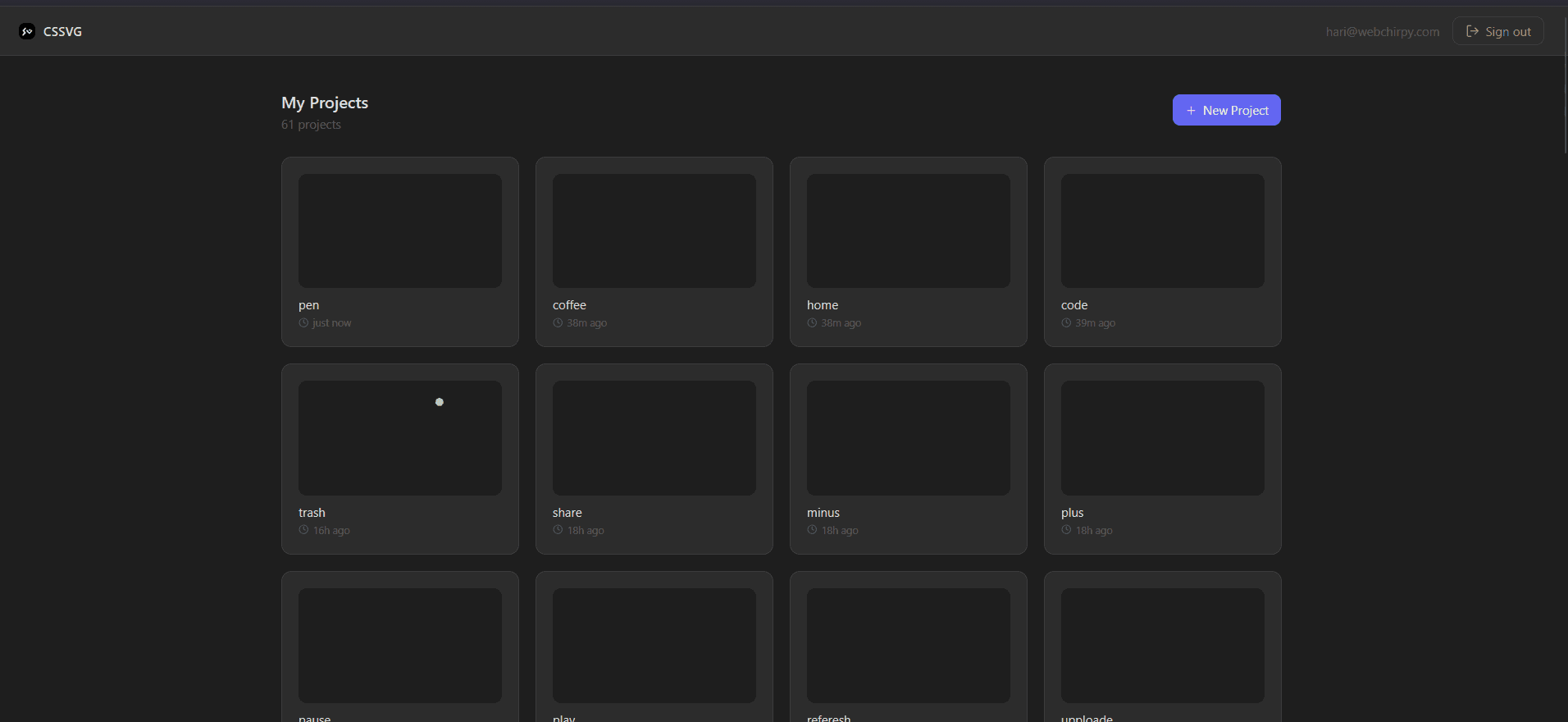

Sign in with your account to save projects to the cloud. Click Projects in the top bar to open the projects drawer — browse, open, rename, or delete your saved animations. Each project shows a live SVG thumbnail so you can see the animation at a glance. Projects autosave as you work.
